DV Huippuimurit

Wolf roof extract fans enable extraction rates of up to approx. 35,000 cbm/h with 36 types of appliances. The newly developed impellers are silent and extremely efficient. With the exception of DV30 (horizontal air outlet), all other types have vertical outlet. Lasting value and long life are guaranteed through the use of reliable external rotor motors and high quality materials.

Wolf also leaves nothing to be desired when it comes to accessories. These range from a variety of different plinths, silencers for special acoustic conditions and accessories for duct connection, to a comprehensive range of switching and control devices.

The fans of the range DV 30, for horizontal discharge, are suitable for discharging slightly polluted but not aggressive air or vapours from - 20°C to app. + 40°C. The rectangular casing, made of galvanised sheet steel, has two opposite mounted discharge outlets protected from the weather with an aerodynamically shaped grille, which provide for horizontally directed, swirl-free air discharge. All roof fans are equipped with an isolator switch ready for connection.

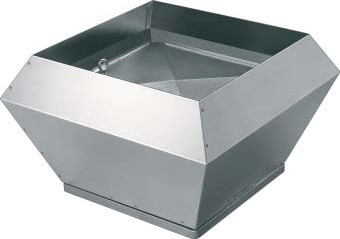

The fans of the range DV 40 - 125, for vertical discharge, are suitable for discharging slightly polluted but not aggressive air or vapours from - 20°C to app. + 40°C. The stylish casing and the base plate are made of galvanised sheet steel. The centrifugal impeller with backward curved blades is made of highly resistant aluminium. The exhaust air, due to the V-casing design, is rejected vertically far from the roof. All roof fans are equipped with an isolator switch ready for connection.

Suomenkielinen esittely tulossa pian...
